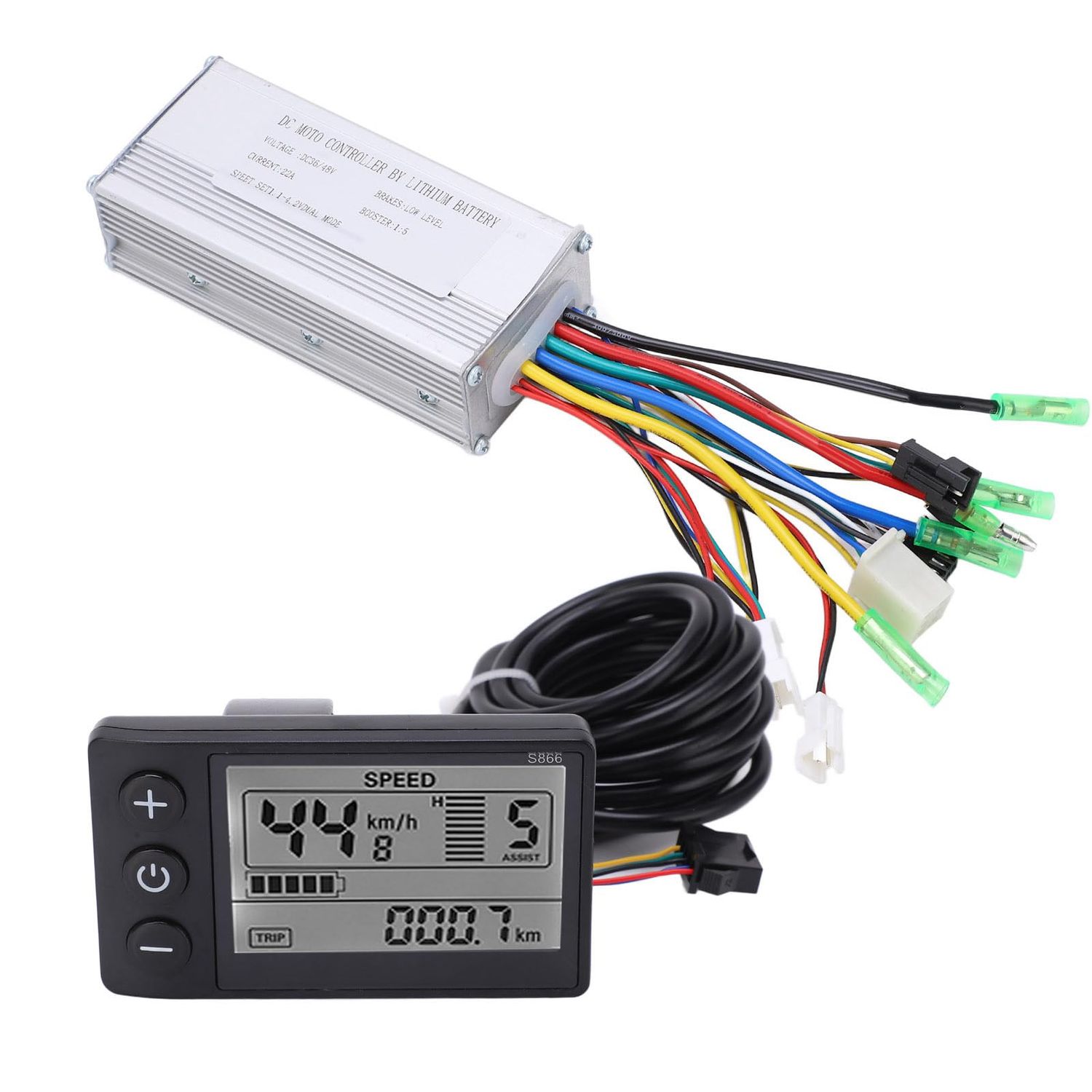

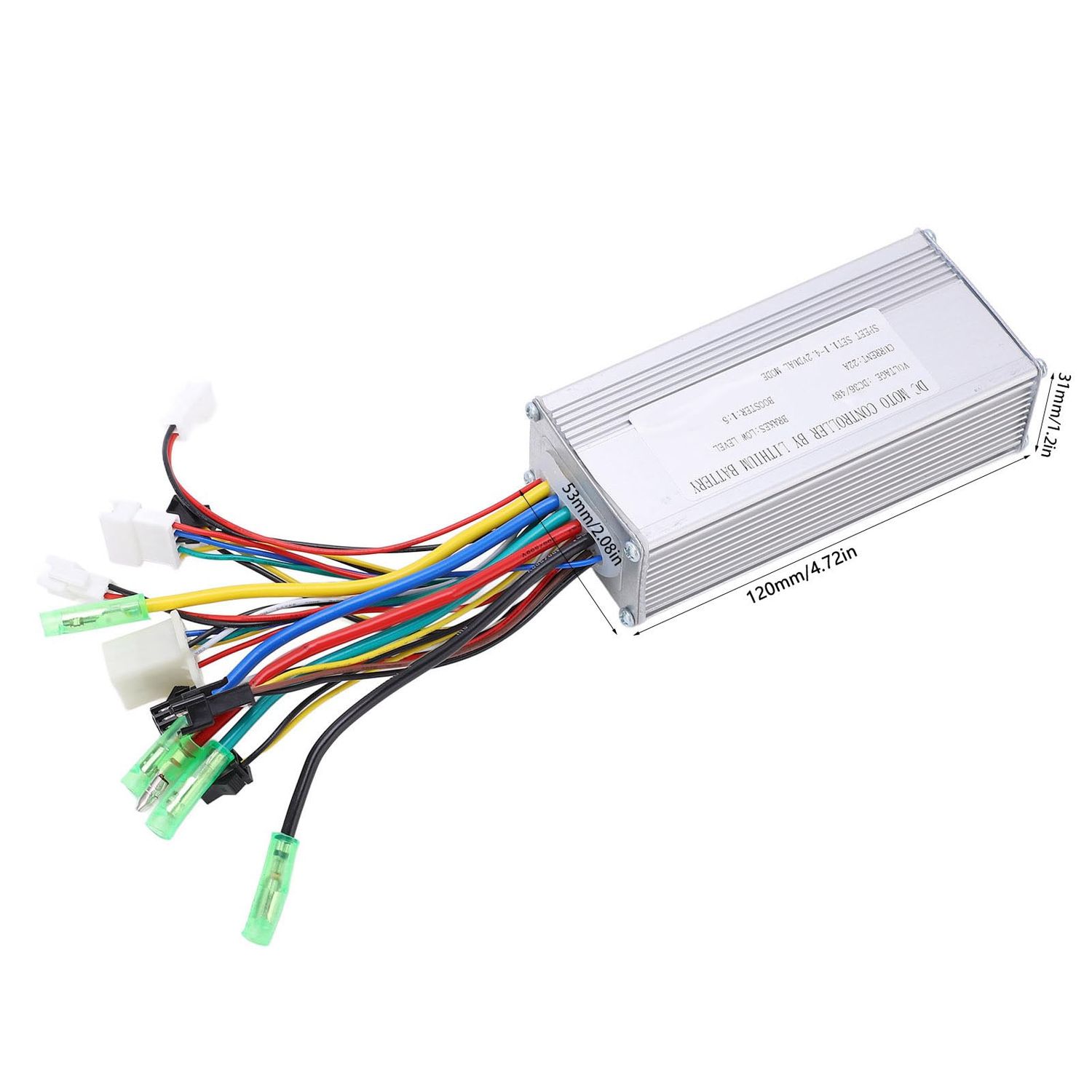

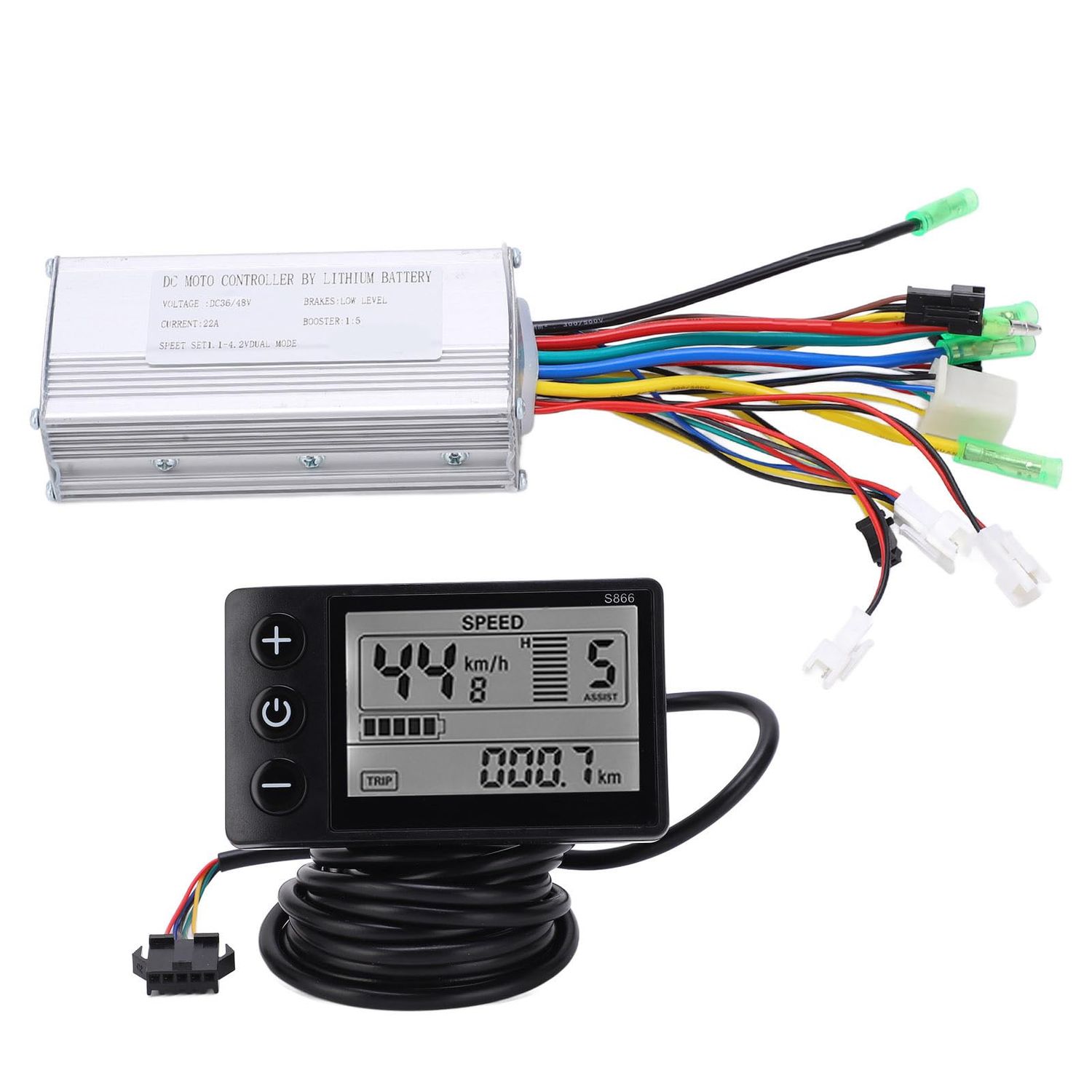

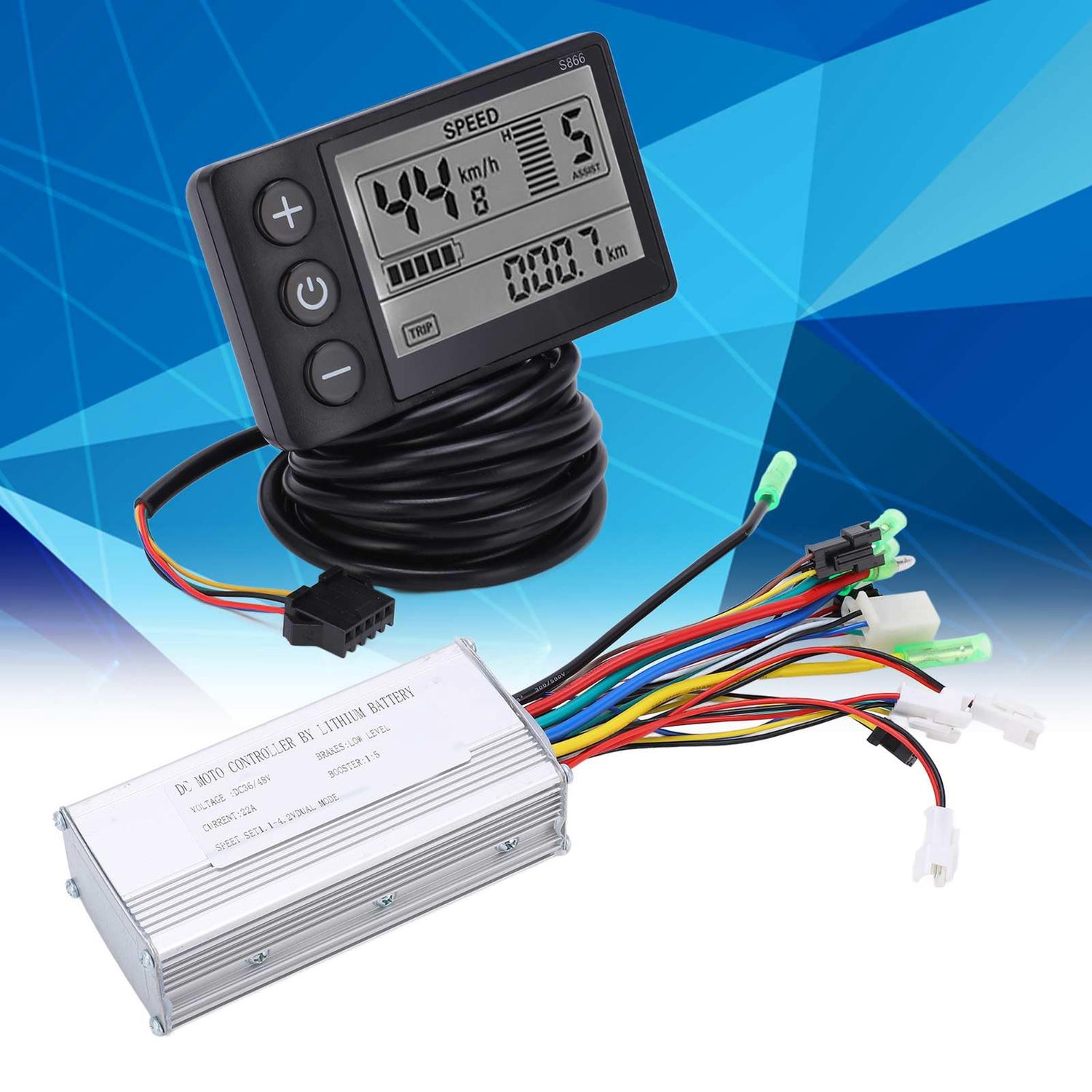

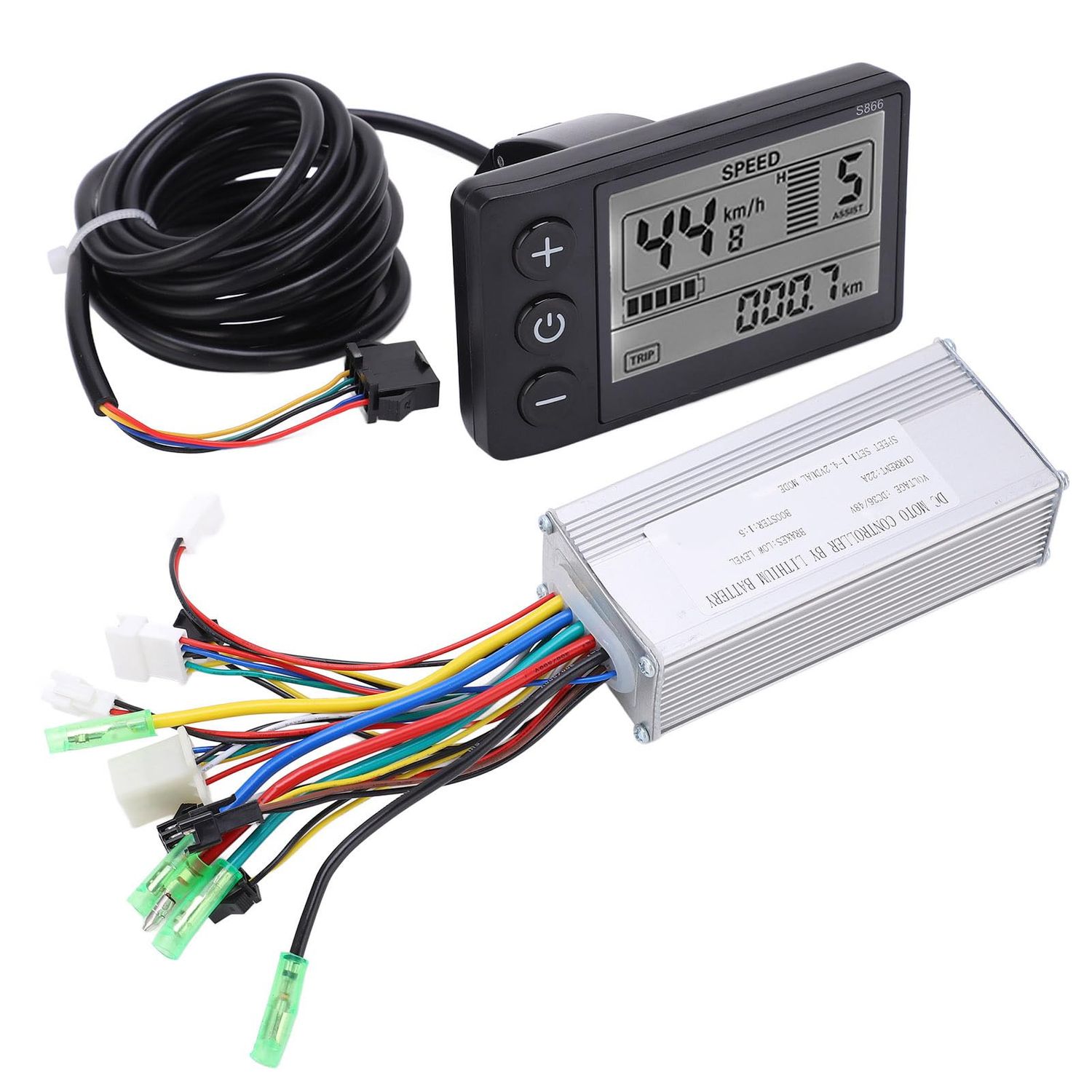

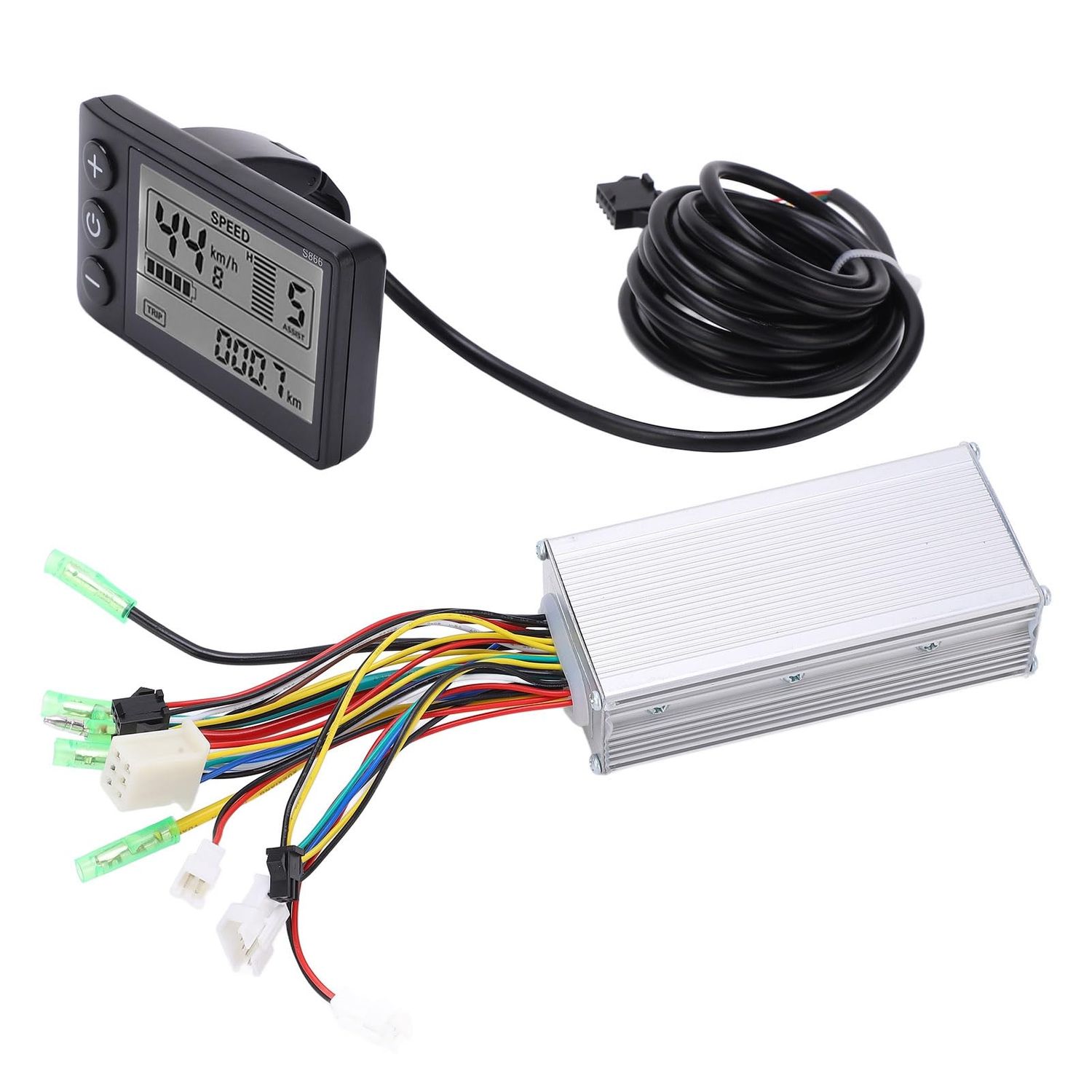

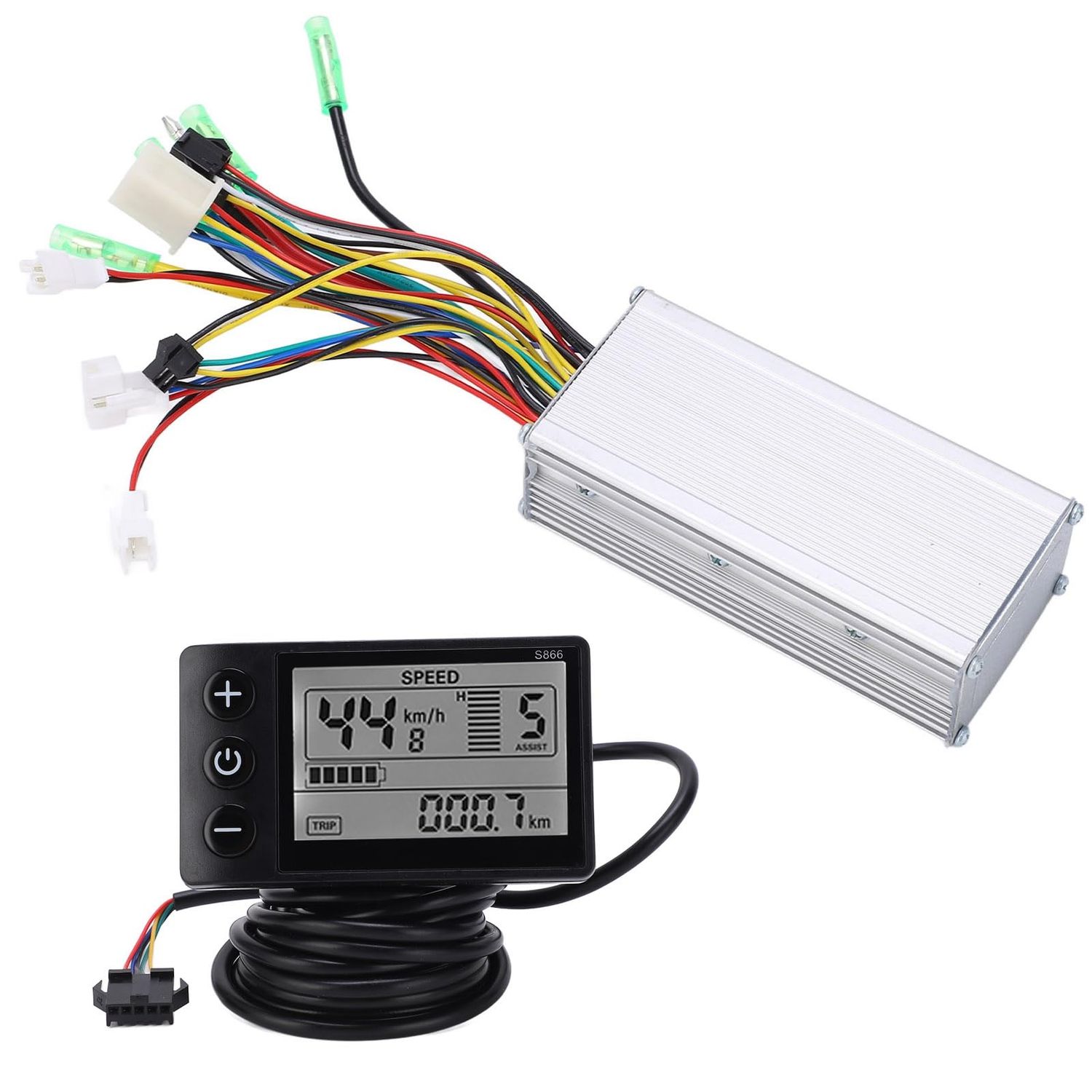

RiToEasysports Electric Brushless Controller Kit, 36/48V 500/750W Brushless Controller Kit with LCD 866 Display Meter 22A9 Tube for Electric Scooter

• Fits for: The electric brushless motor controller fits for 22.2mm / 0.9in handlebars
• Compatible motors: Electric controller is with light outlet meter and control light switch, matching 36V, 48V and 500W, 750W motors
• with LCD Display: The electric brushless motor controller comes with LCD display which can clearly display status and data, backlight allows you to see the screen clearly in a dim environment
• Easy to Operate: The electric conversion kit includes brushless controller and LCD meter, widely applicable to electric bikes and scooters
• Good Heat Dissipation: The controller housing is made of metal with design to the internal circuitry from thermal overload

• Manufacturer: RiToEasysports
• Package Quantity: 1
• Part Number: RiToEasysportsedm4q8hg011187

How to Use:
The function can be realized by plugging the instrument interface into the controller interface. Please refer to the manual for other accessories.

Specification:
Item Type: Electric  Brushless Controller Kit
Weight: Approx.472g / 16.6oz
Material: Aluminum Alloy + ABS
Controller Parameters:
Mosfet: 9 Mosfet
Rated Voltage: DC36V 48V
Current: 22A
Speed Setting: 1.1-4.2V
Brake: Low Level
Supercharger: 1:5
Meter Parameters:
Communication Protocol: UART
Grade: IP65
Install Diameter: Approx.22.2mm / 0.9in

Package List:
1 x Controller
1 x LCD Meter
2 x Manual
