- Voltage: 14-84V (safe for 4S-20S);Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!)
- Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
- Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
- Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
- Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
- Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.
- Supporting extra interface like front lights, rear brake lights and horn fixtures.
- Color: BLACK
- Manufacturer: Flipsky

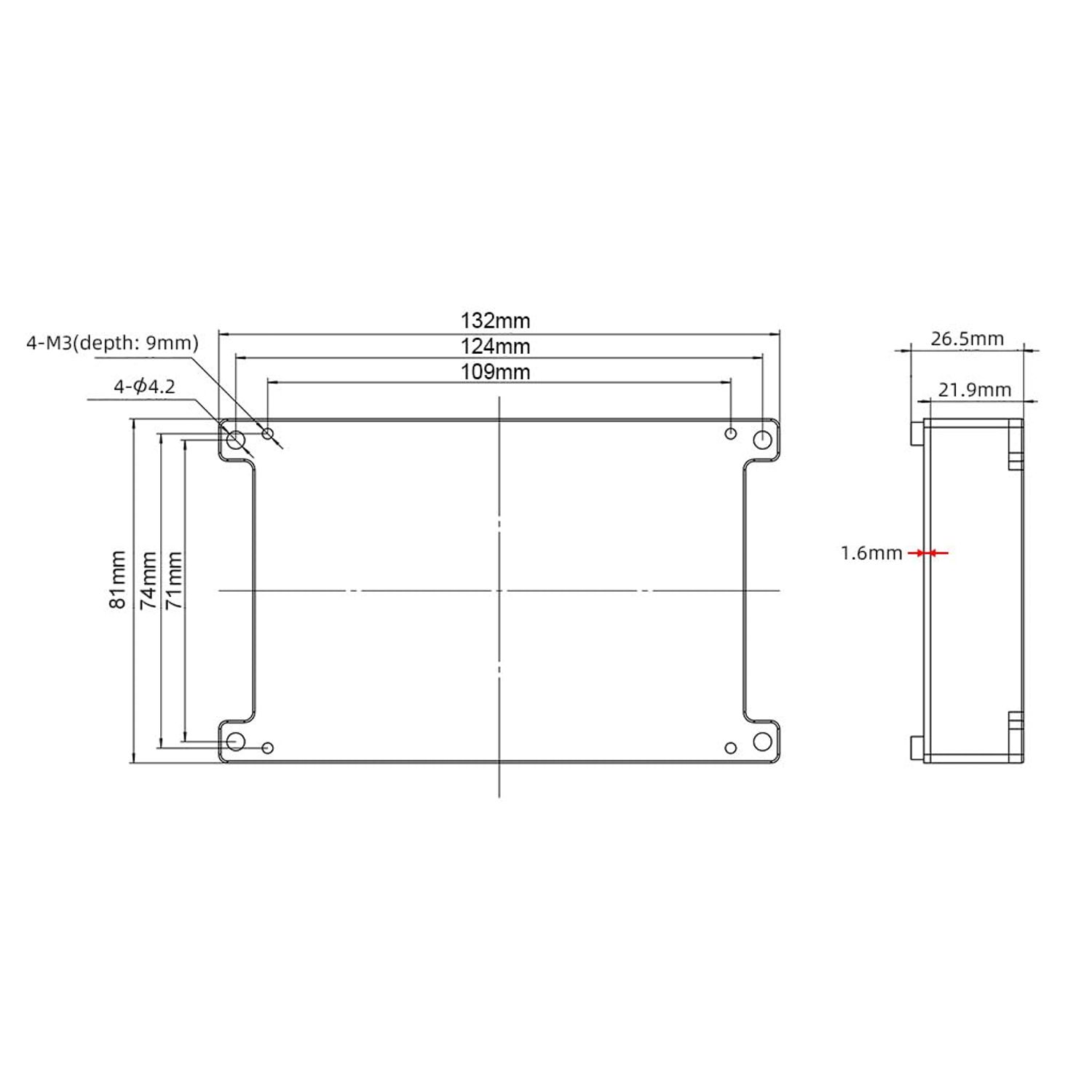

- Size: L132*W81*H26.5mm(Including Alu. Case)
Note: USB cable black or white will be shipped randomly.
Specifications :
- Firmware: V1.2 (firmware update via Flipsky ESC Tool supported)
- Voltage: 14-84V (safe for 4S-20S)
- Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!)
- Peak Current: 250A / Single; 500A / Dual

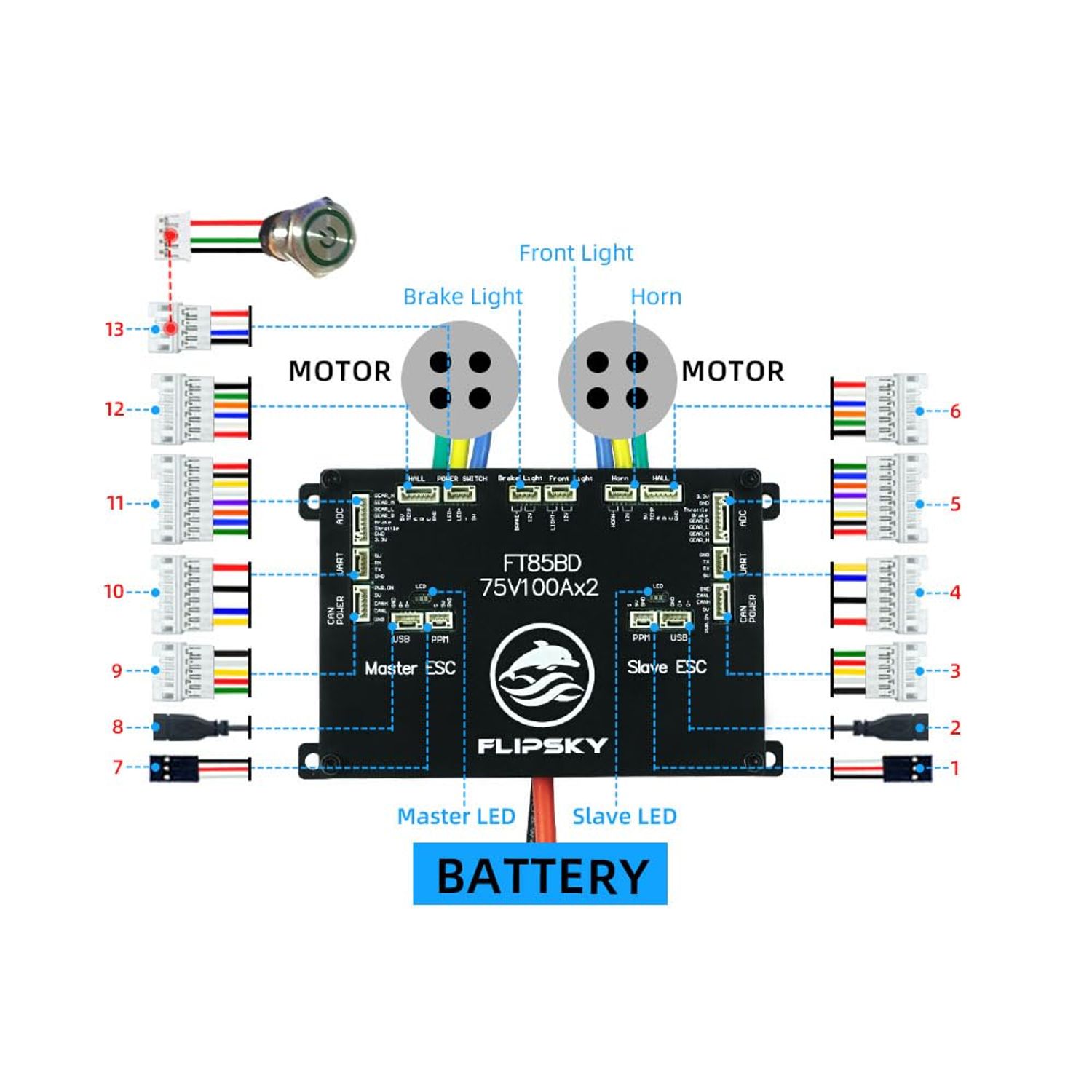

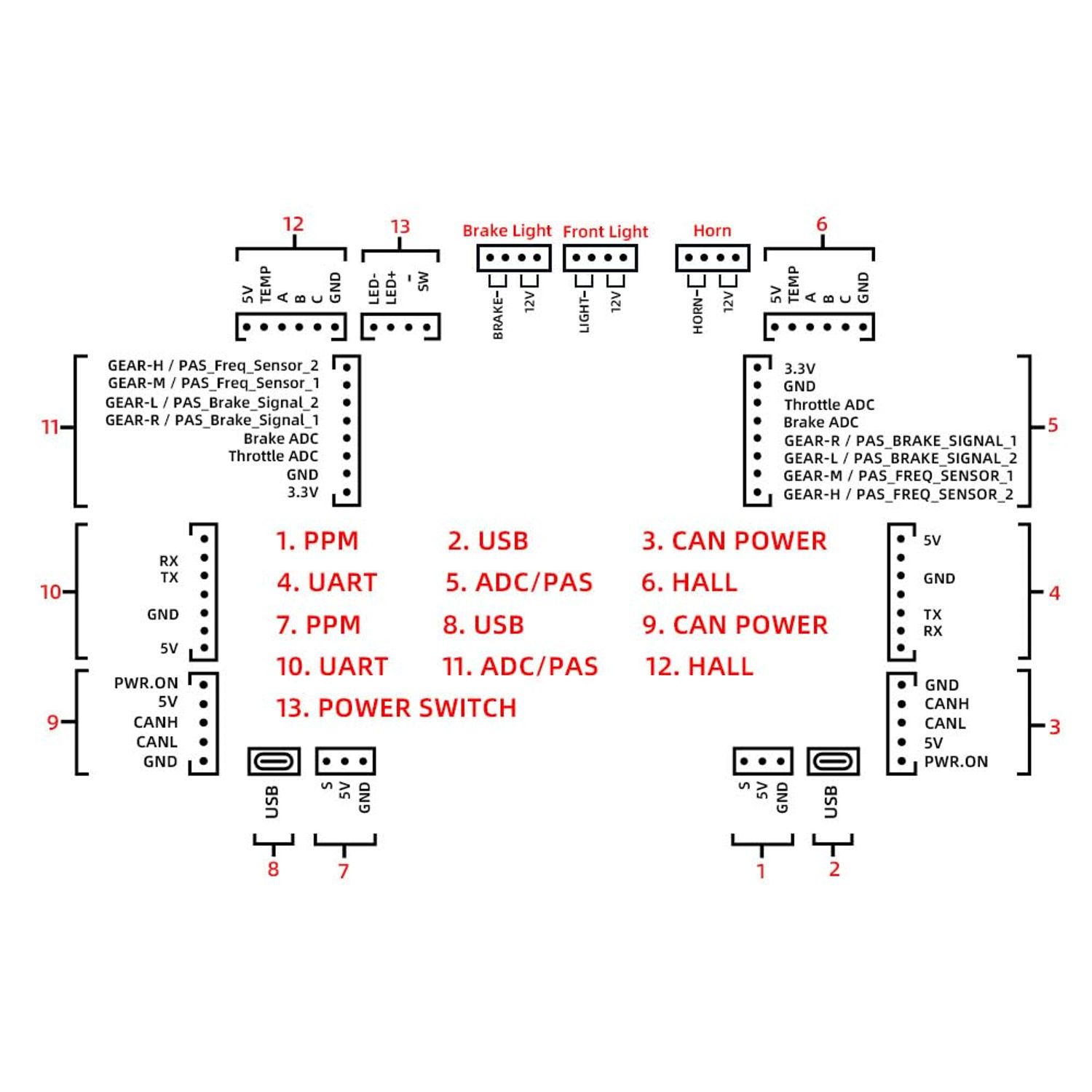

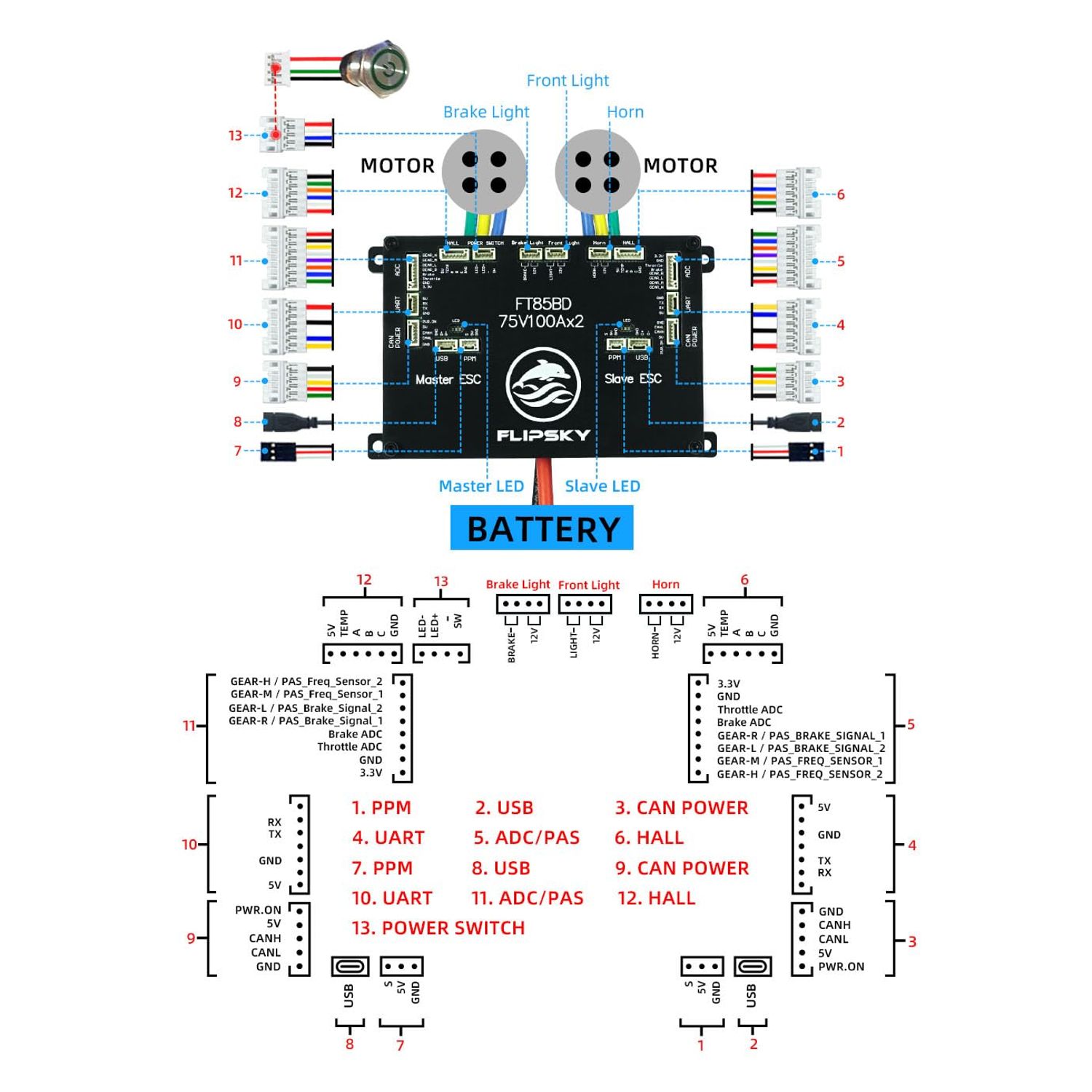

- Communication Ports: USB, CAN, UART, PPM, ADC
- Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present)
- Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored)
- BEC: 5V@1A
- Multiple Speed Gear levels: Low, Medium, High, Reverse
- Front Lights, Rear Brake Lights & Horn: Support
- Programmable: Yes
- Regenerative Capacity: Yes
- Slide Poweron & Auto shutdown: Yes
- Self-resetting switch with green LED button Diameter: 16mm
- Power Wire Size: 10AWG; Motor Wire Size: 12 AWG
- Size: L132*W81*H26.5mm(Including Alu. Case)
Features:
1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
2.240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
4.Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
5.Supporting motor FOC with low working noise and smooth starting.
6.Supporting Real-time data and fault alerts.
7.Supporting adaptive variable PWM frequency control.
8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
9.Supporting control types: Current, Duty Cycle
10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
11.Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.
12.Supporting extra interface like front lights, rear brake lights and horn fixtures.
