CHINLY 6pcs 2.4G DMX512 Wireless 1 Male Transmitter & 5 Female Receivers Control Short version for Stage PAR Party Light

• DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console) by wireless way.
• No time delay when signal data is transmitting, signal data is real time and reliably.
• Work frequency section:2.4G ISM ; Communication distance: 400M (visible distance)
• High effective GFSK modulate,communication design; 126 channels jumping frequency automatically, high anti-jamming ability.
• 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place.

• Color: 1 Transmitter & 5 Receivers(built-in antenna)
• Manufacturer: CHINLY
• Model Number: SR5538
• Package Quantity: 1
• Part Number: SR5538
• Size: 1 Transmitter & 5 Receivers(built-in antenna)

Specification:
1. 2.4G wireless DMX512 R / T
2.Work voltage: AC100-240V
3.Receive Sensitivity: -94dBm
4.Max transmitting power rate: 20dBm
5.DMX connector: 3pin male
6.Communication distance: 400M (visible distance)
7.Work frequency section: 2.4G ISM, 126 channels.frequency section
8.7 groups ID code settable,User can use 7 groups individual wireless net without any interfere. 9.Material: zinc alloy + plastic

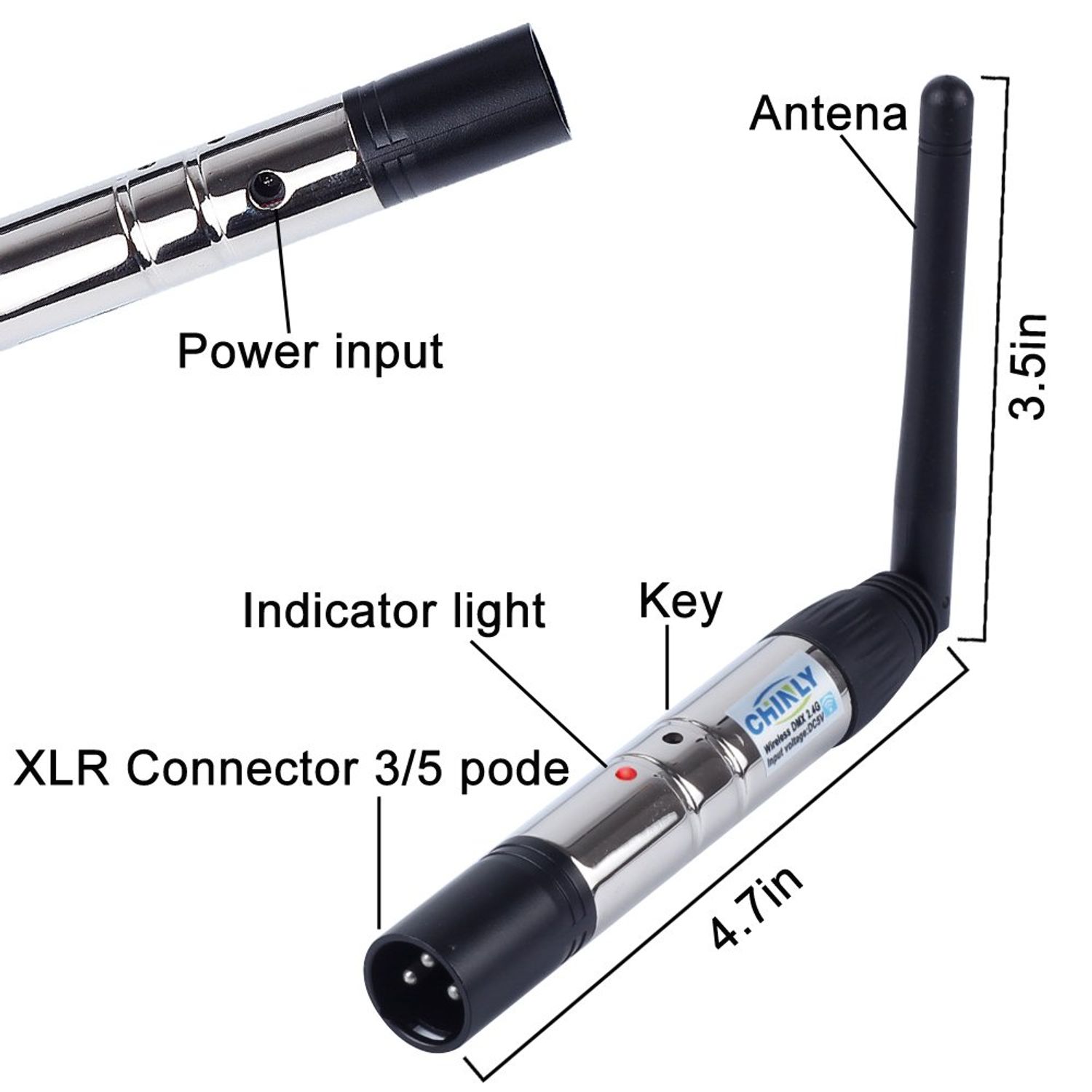

10.DMX wireless transmitter size: L8.2 * W0.7 * H0.7in

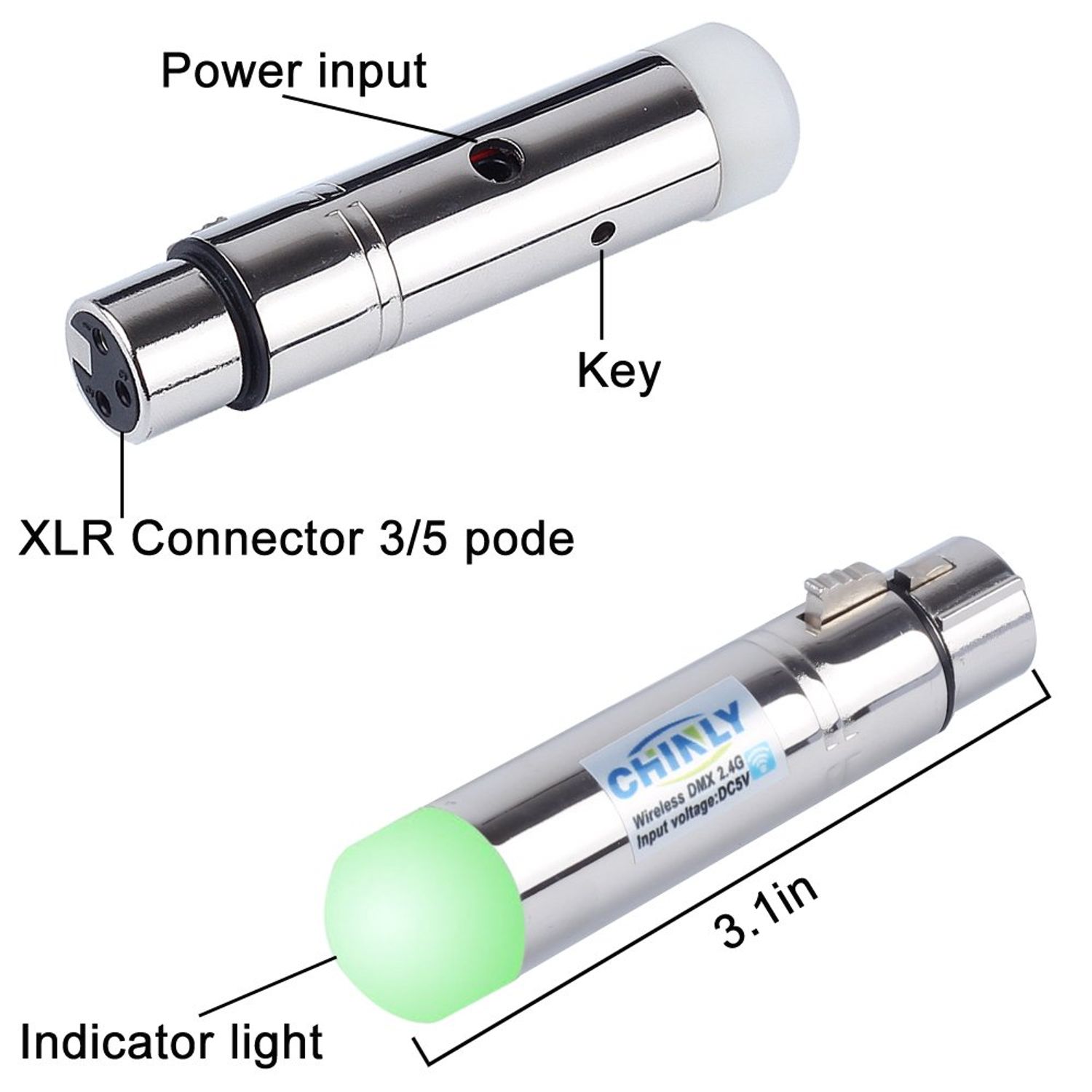

12.DMX wireless received size: L3.1 * W0.7 * H0.7in
12.Package weight: 2.4lb


Establishing Communication:
1. Power on DMX512 wireless received board first and then following to power up the transmitted board.
2. Press “Key” button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flashes until received same ID value, the more DMX data, the faster the LED flashes.
4. Communication was established correctly.

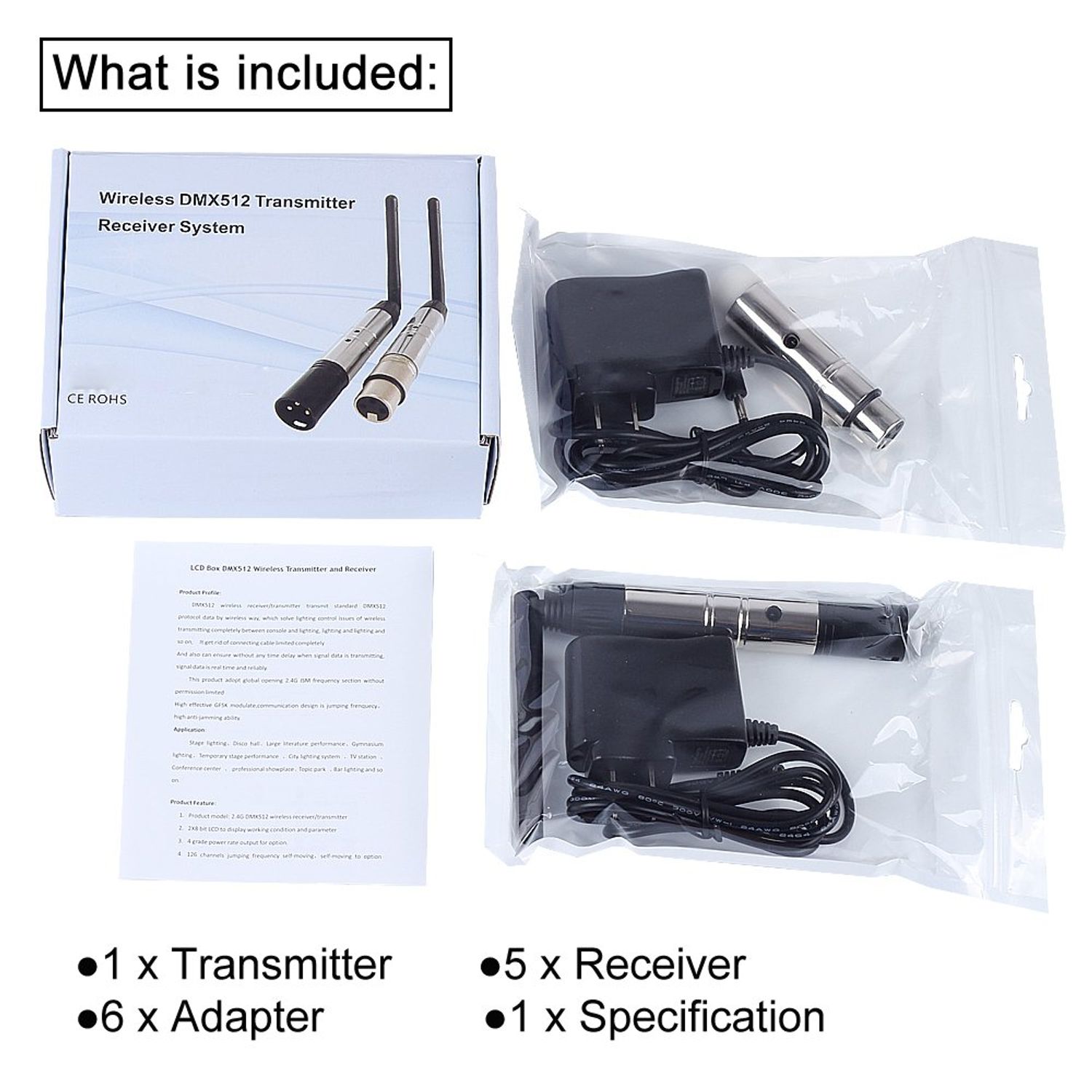

Package list:
1 x DMX wireless transmitter(US Plug)
5x DMX wireless receivers(US Plug)
6x Adapter
1 x Specification
