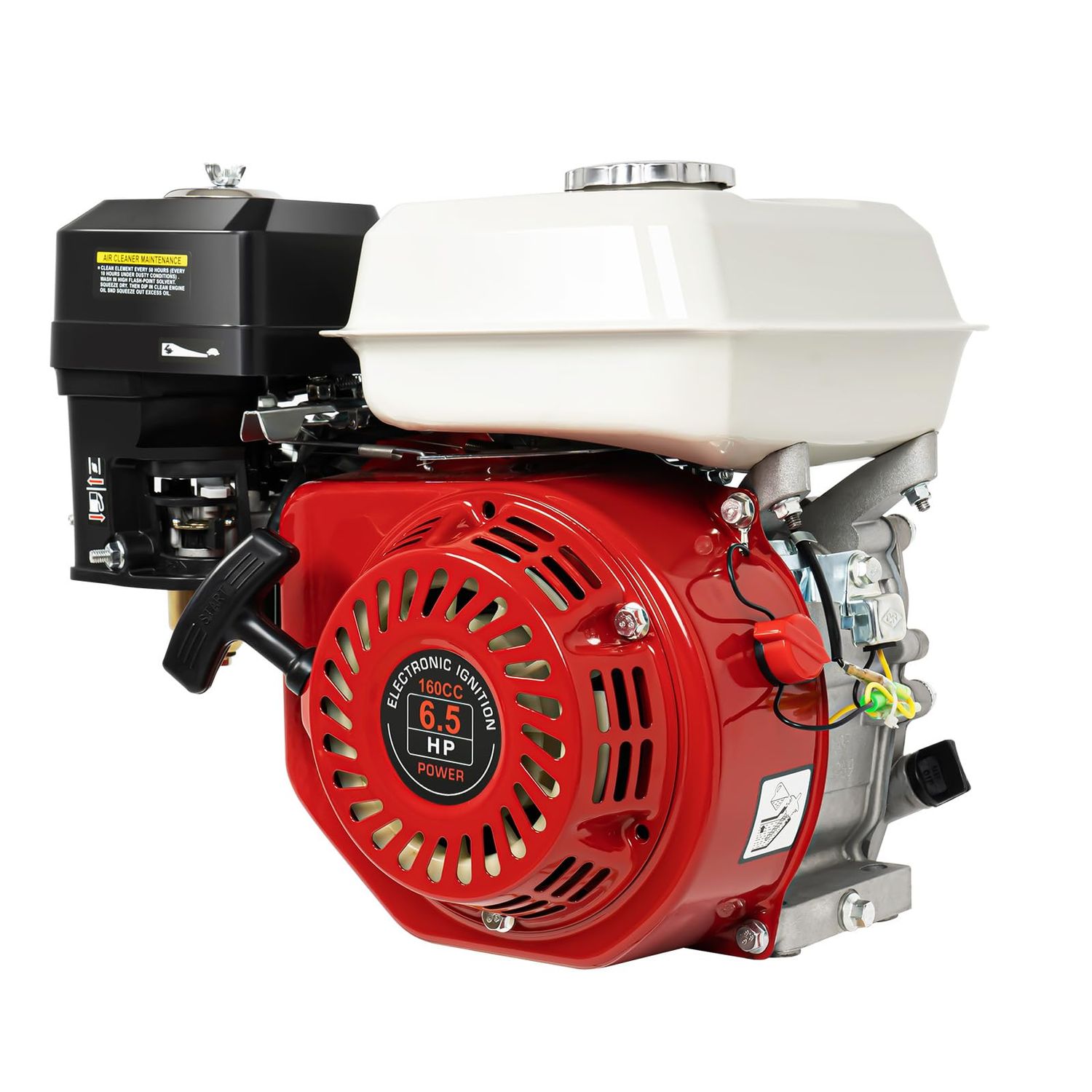

4 Stroke Pull Start Petrol Engine, 6.5HP/7.5HP Horizontal Air Cooled Single Cylinder General Gas Engine Replaces Compatible For Honda GX160 OHV (6.5HP 160CC)

• ☑【Efficient Cooling System】The built-in air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.
• ☑【Strong Power】The engine has a power of up to 3kw and a high speed of up to 3600r/min, our engines produce a lot of power and help you get the job done quickly and well.

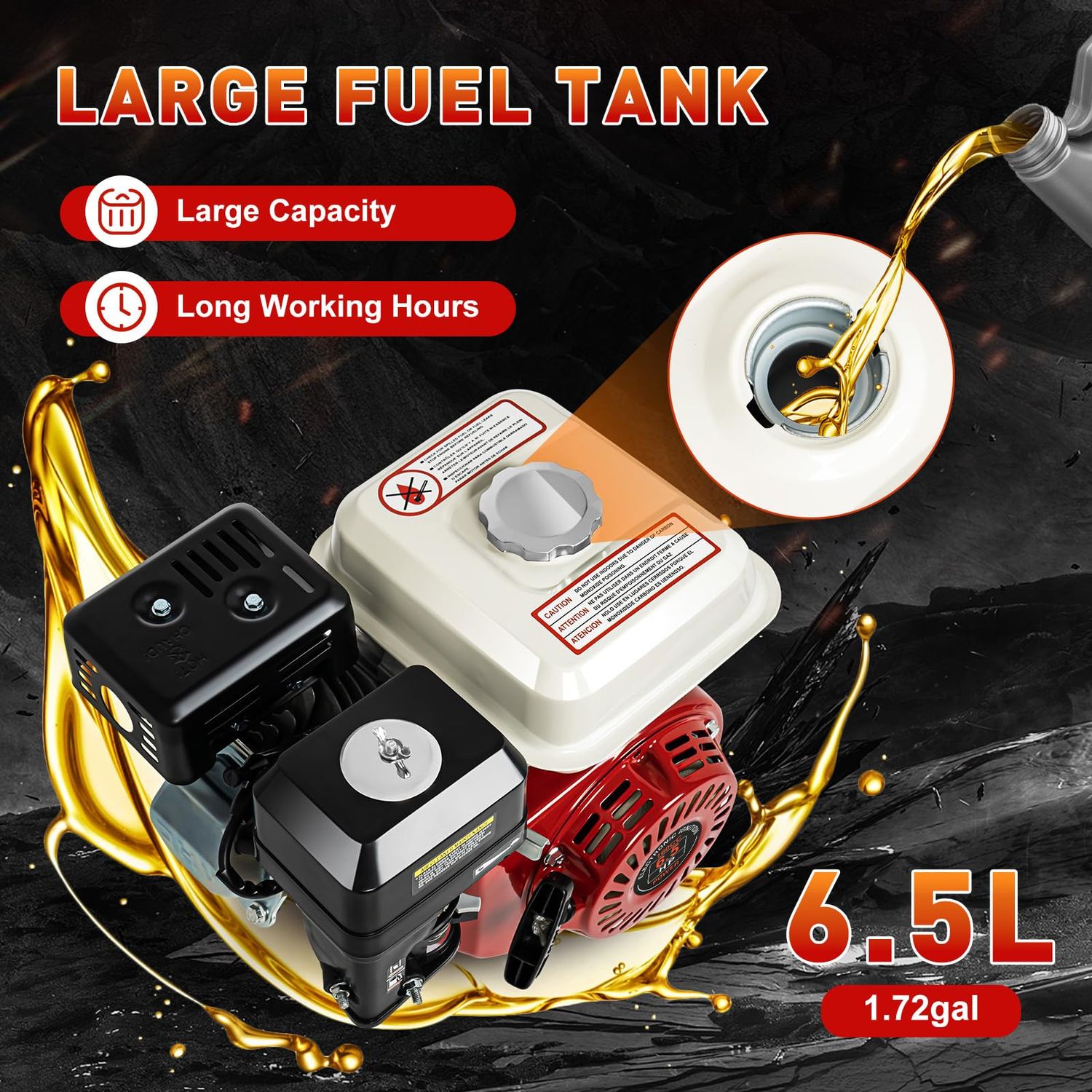

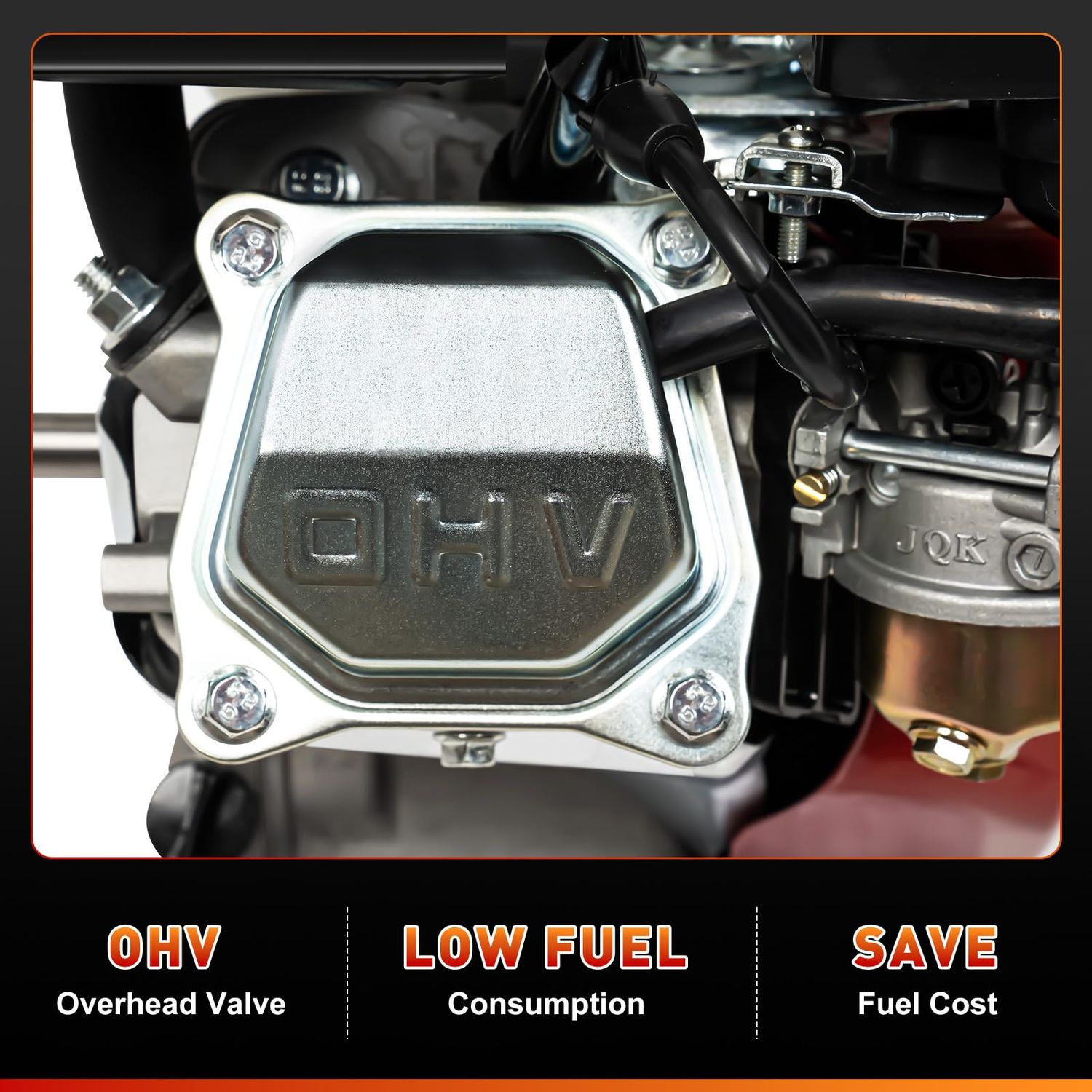

• ☑【Fuel Saving】The OHV overhead valve effectively helps reduce carbon buildup and dramatically improves fuel savings. The engine has a large fuel tank capacity of 6.5L/1.72gal allowing it to work for a long time.
• ☑【Application】This 6.5HP horizontal engine can be used widely with pumping machines, microtillers, cleaning machines, spraying machines, threshing machines, smoothing machines, etc.

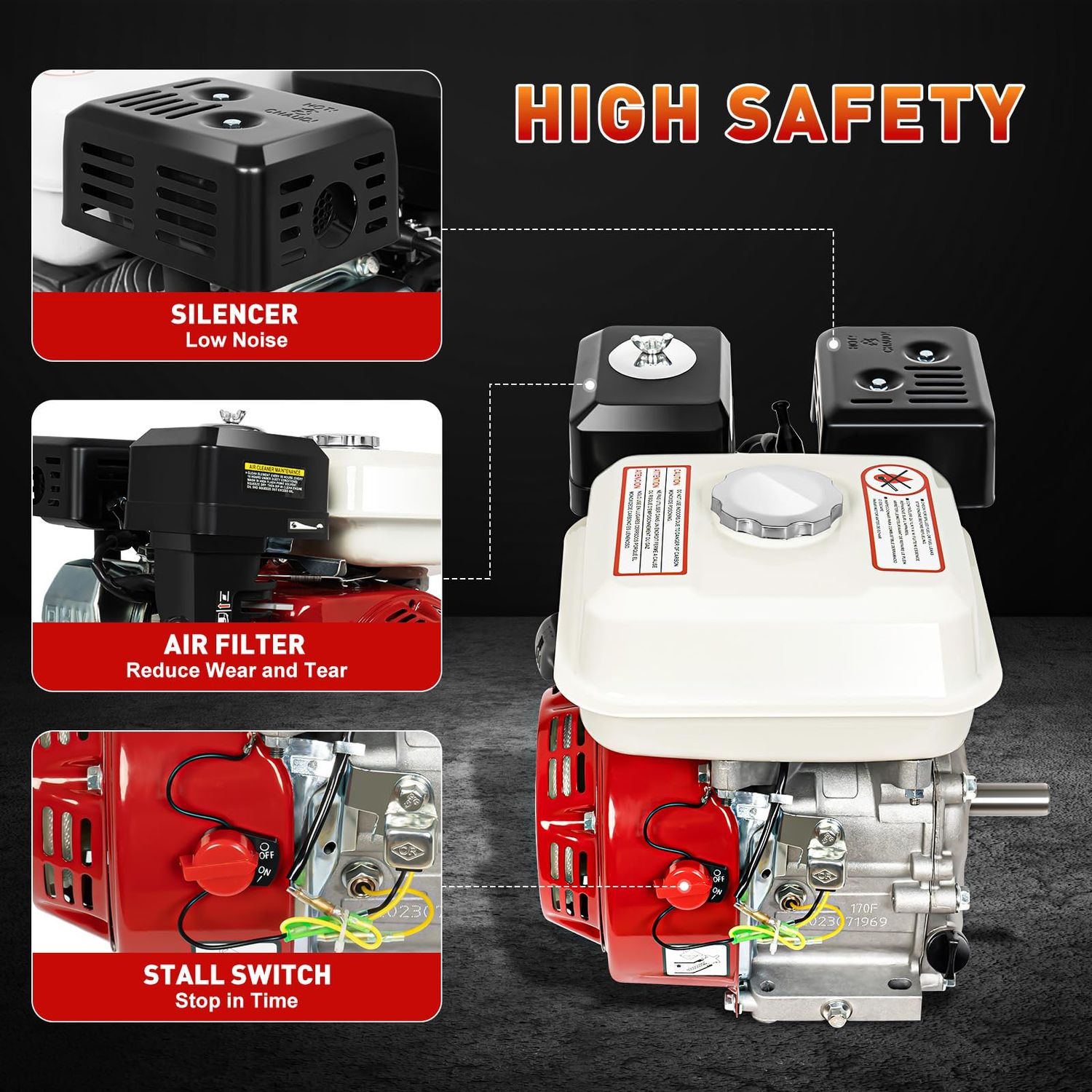

• ☑【High Safety】The 6.5HP petrol engine is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Moreover, the cast iron cylinder liner make engine operation smoother and overall performance more stable, thus the machine will not be easily damaged and has a longer service life.

• Color: 160CC 6.5HP - Gasoline
• Manufacturer: YIYIBYUS
• Size: 160CC 6.5HP

Details

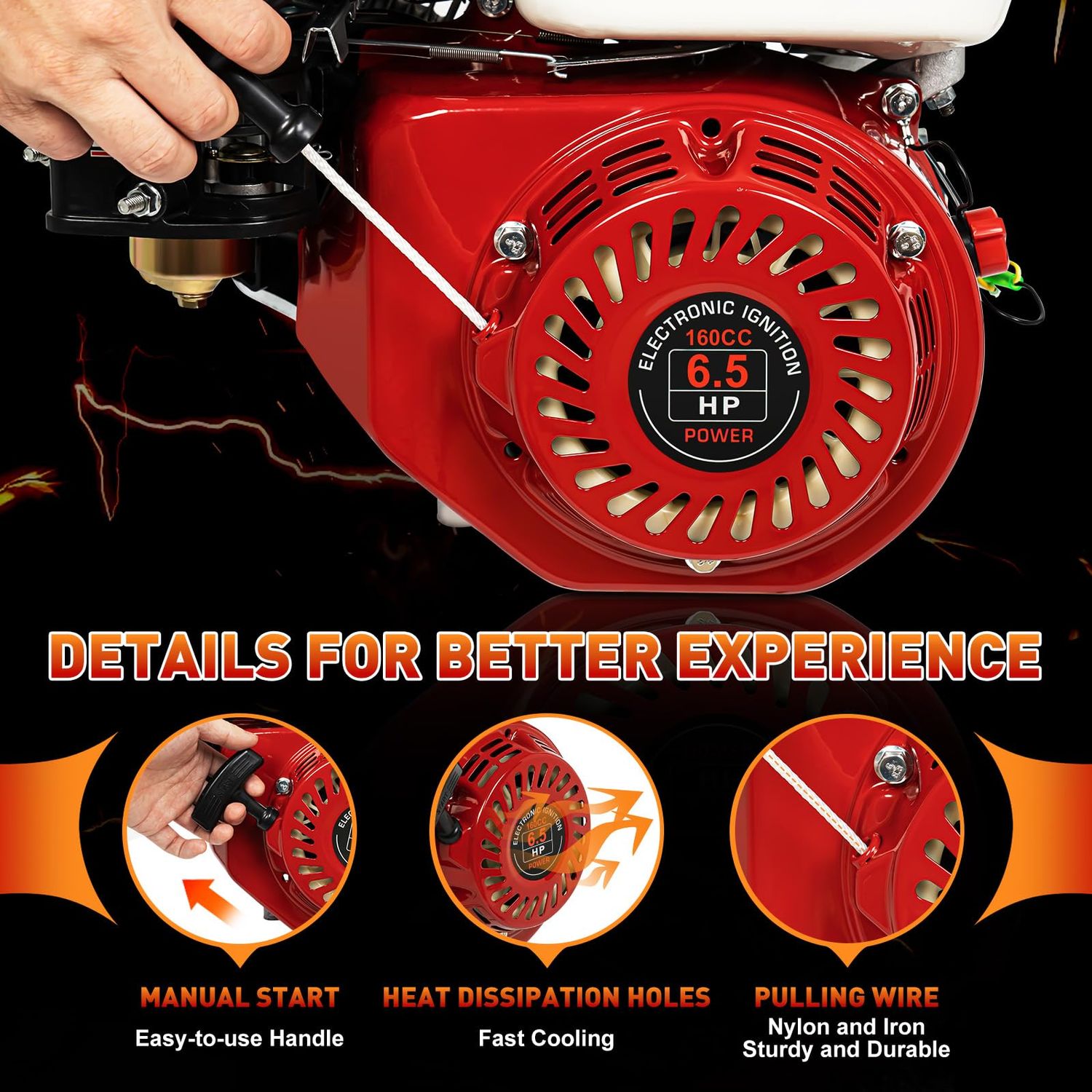

Pulling Wire: The pulling wire is made of nylon and iron, which is more wear-resistant, durable and uneasy to pile up for easy starting.

Ergonomic Handle: The hand-pull starter features an ergonomic plastic handle that is non-slip and easy to use.

Air Filter: It can improve the air filtration performance of the machine, reduce wear and tear, and increase its service life.

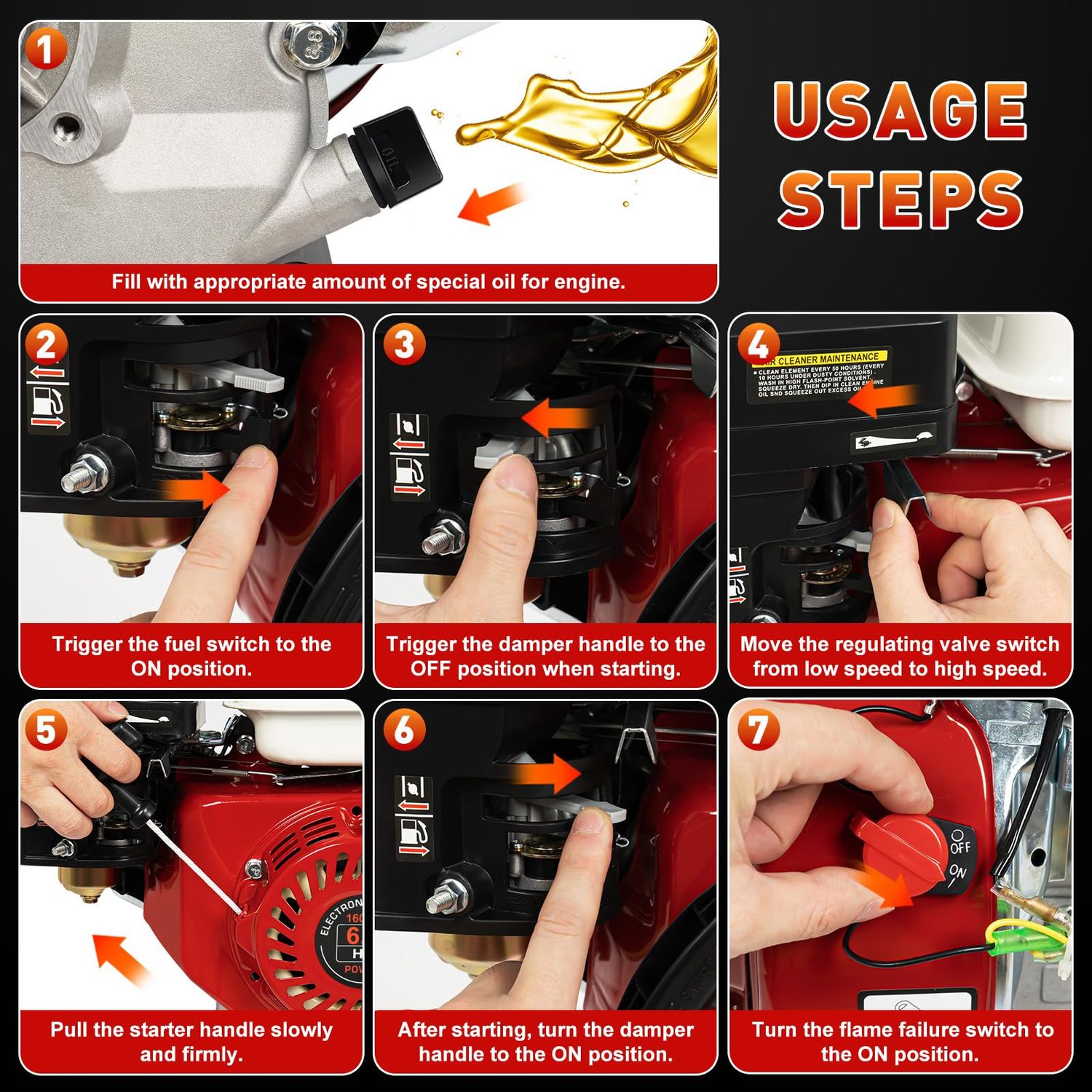

How to Use

1. Fill with appropriate amount of special oil for petrol engine.

2. Trigger the fuel switch to the ON position.

3. Trigger the damper handle to the OFF position when starting.

4. Move the regulating valve switch from low speed to high speed.

5. Pull the starter handle slowly and firmly.

6. After starting, turn the damper handle to the ON position.

7. Turn the flame failure switch to the ON position.

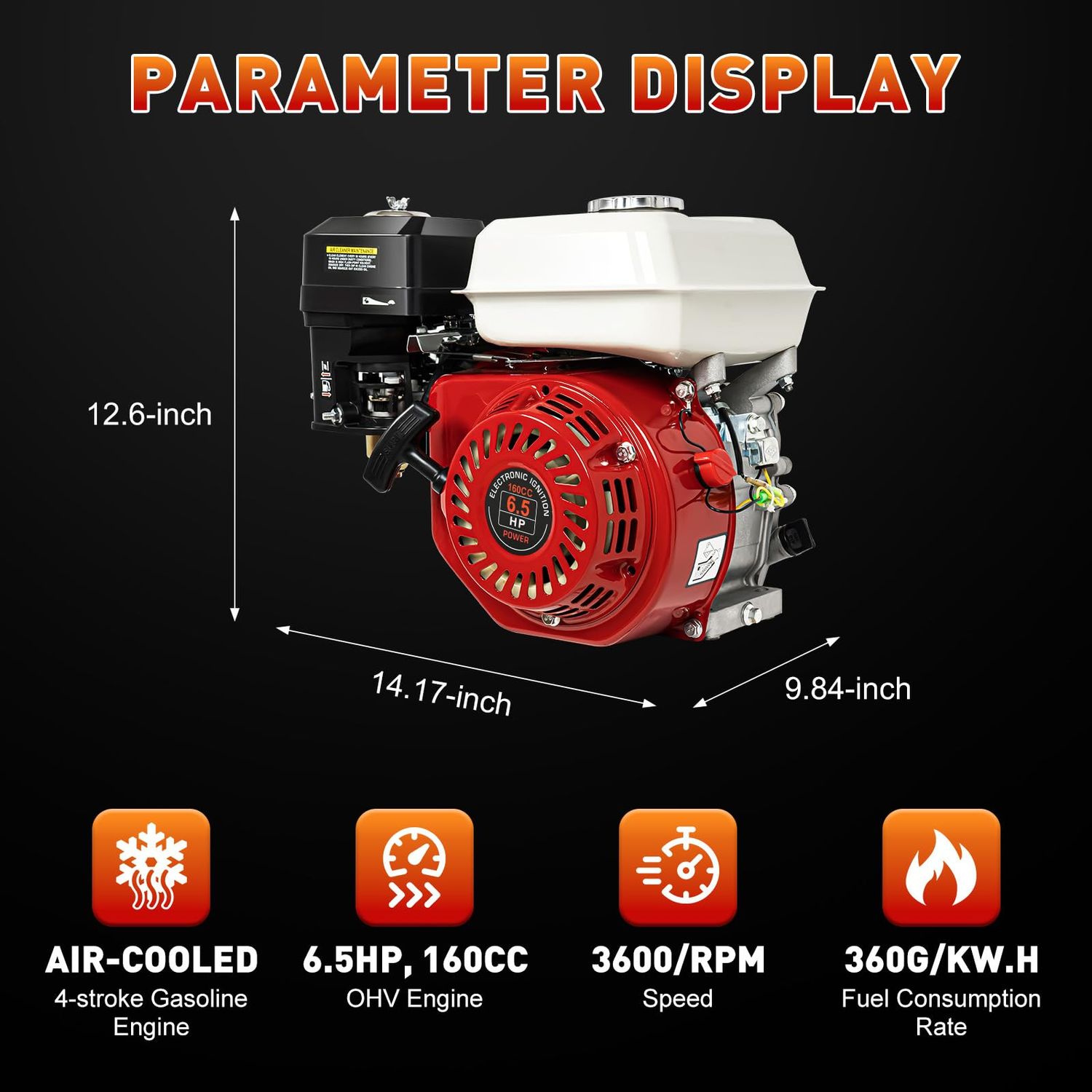

Specification

Material: Aluminum, Iron, Cast Iron, Plastic

Fuel Type: Gasoline

Lube Oil Capacity: 0.6L/0.16gal

Engine Oil Capacity: 3.6L/ 0.95gal

Max. Torque: 10.8N-m

Bore Stroke: 70*45mm/2.76*1.77inch

Displacement: 160cc

Engine Type: 4-strokes, Single Cylinder, Air-cooled

Horsepower: 6.5HP

Speed: 3600rpm

Fuel Consumption Rate: 360g/kw.h

Max Power: 3kw

Rated Power: 2.8kw

Shaft Diameter: 20mm/0.79inch

Rotation: Clockwise

Starting System: Pull Start

Packing Size: 48*38*37cm/18.9*14.96*14.57inch

Product Size: 36*25*32cm/14.17*9.84*12.6inch

Gross Weight: 14.45kg/31.86lbs

Net Weight: 12.35kg/27.23lbs

Package Included

1 * Petrol Engine

1* English Manual

Other Accessories for Installation

Notes

1. Please read the instructions carefully before use.

2. Please note that do not use indoors due to danger of carbon monoxide poisoning.
