1000W 48V Brush Electric Bicycle Motor, Brush Motor Kit with Controller 3 Speed Gears E-Bike Cycling for EVO Scooters Gokarts Motorized Bicycle Beach E-Bike

• High-quality Motor: This electric motor equipped with reliable metal housing protects the internal circuit and has good heat dissipation performance with the holes to avoid thermal overload. So it has a long service life.

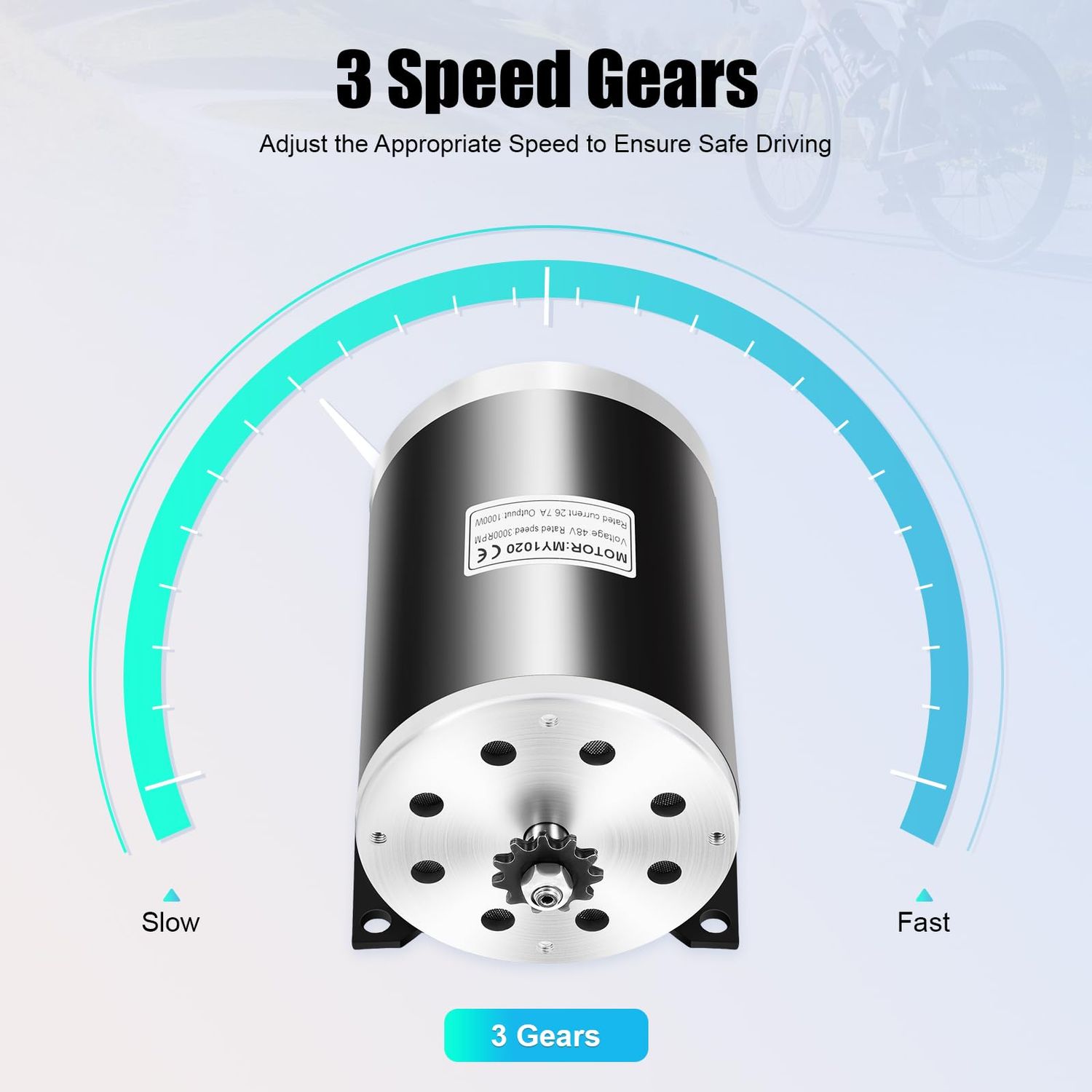

• 3 Speed Gears: The controller has three speed gears to adjust the speed of the motor. You can adjust the appropriate speed to ensure safe driving.
• Environmental-friendly and Economical: E-bikes do not need to add any fuel. It can not only save your fuel bills but also protect the ecological environment.
• Lockable: After being attached, this kit can be locked with the complimentary key to prevent others from stealing your bike. The handle is pre-loaded with a keyhole for smooth opening and locking.
• Energy-saving: With this conversion kit, your bike or EVO scooter will become an electric one. So you don't have to struggle to ride. Electric drives will replace human drives. You will feel relaxed when riding.

• Manufacturer: Mahugde
• Model Number: Brush Electric Bicycle Motor
• Part Number: Motor Controller

Description

This is a 48V 1000W brush electric bicycle conversion kit. It mainly contains a motor, a controller and other conversion accessories. It is mainly used to convert small go-karts, beach bikes, EVO scooters, and small electric motorcycles into electric ones. This kit has a complete range of conversion accessories to complete most conversions. It provides efficiency and convenience to help you fully enjoy riding.

Application

This conversion kit is suitable for small karts, beach bikes, EVO scooters, small electric motorcycles, etc.

Specification

Color: Black, Silver

Material: Copper, Iron and Aluminum

Chain Model: T8F

Motor Model: MY1020

Controller Model: LK-07

Voltage:48V

Power:1000W

Motor Type: Brush Motor

Unload Current: 2.2A

Rated Current: 26.7A

Unload Speed: 3700 rpm

Rated Speed: 3000 rpm

Rated Torque: 3.2N·m

Motor Efficiency: ≥78%

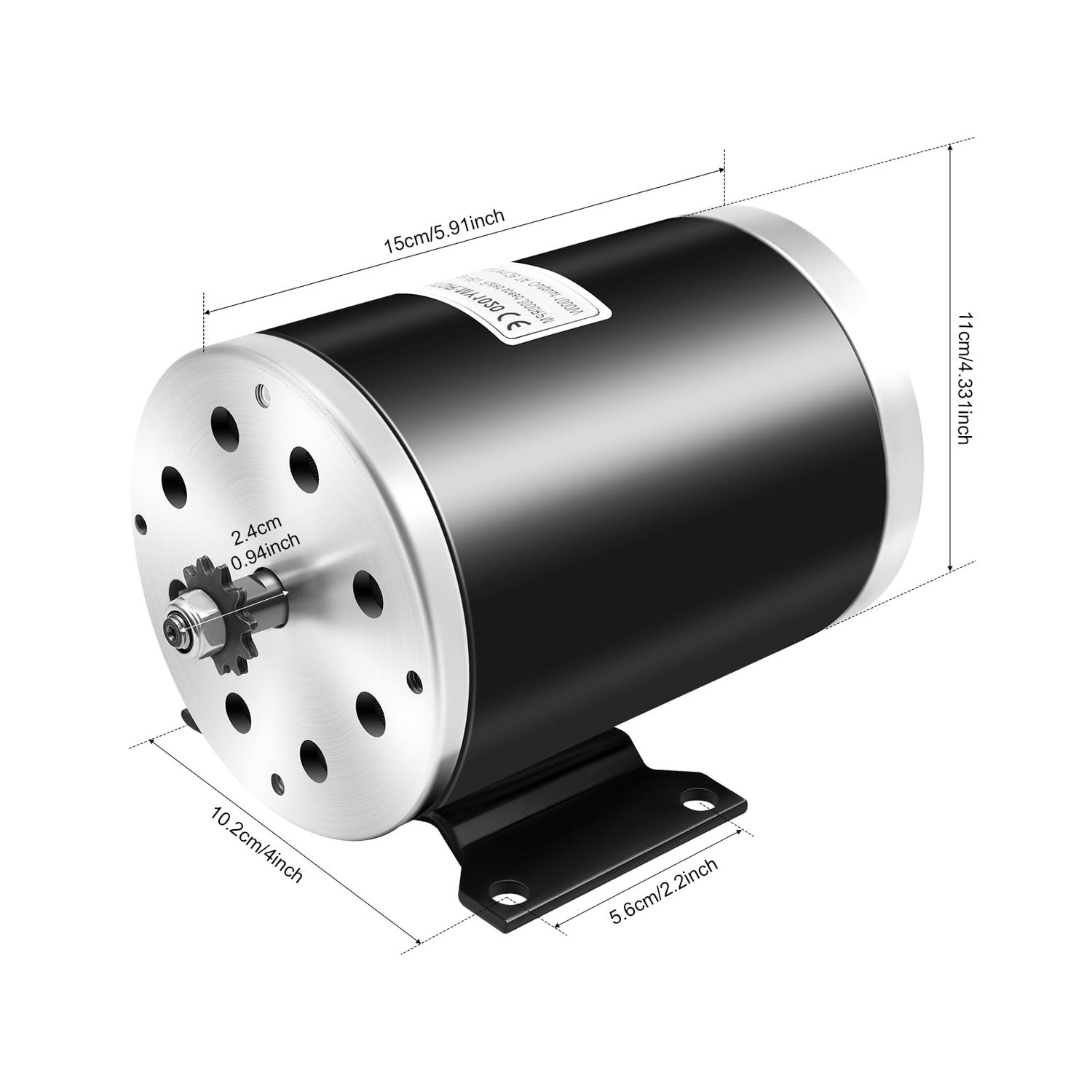

Motor Length: 15cm/5.91inch

Motor Shaft Length: 2.4cm/0.94inch

Motor Diameter: 10.2cm/4.01inch

Motor Screw Holes Distance: 9.489-9.511cm/3.736-3.744inch

Motor Height: 11cm/4.33inch

Motor Stand Screw Holes Distance (Horizontal): 5.6cm/2.2inch

Motor Stand Screw Holes Distance (Vertical): 10.2cm/4.01inch

Package Size: 29*17*19cm/11.4*6.7*7.5inch

Gross Weight: 6.2kg/13.7lbs

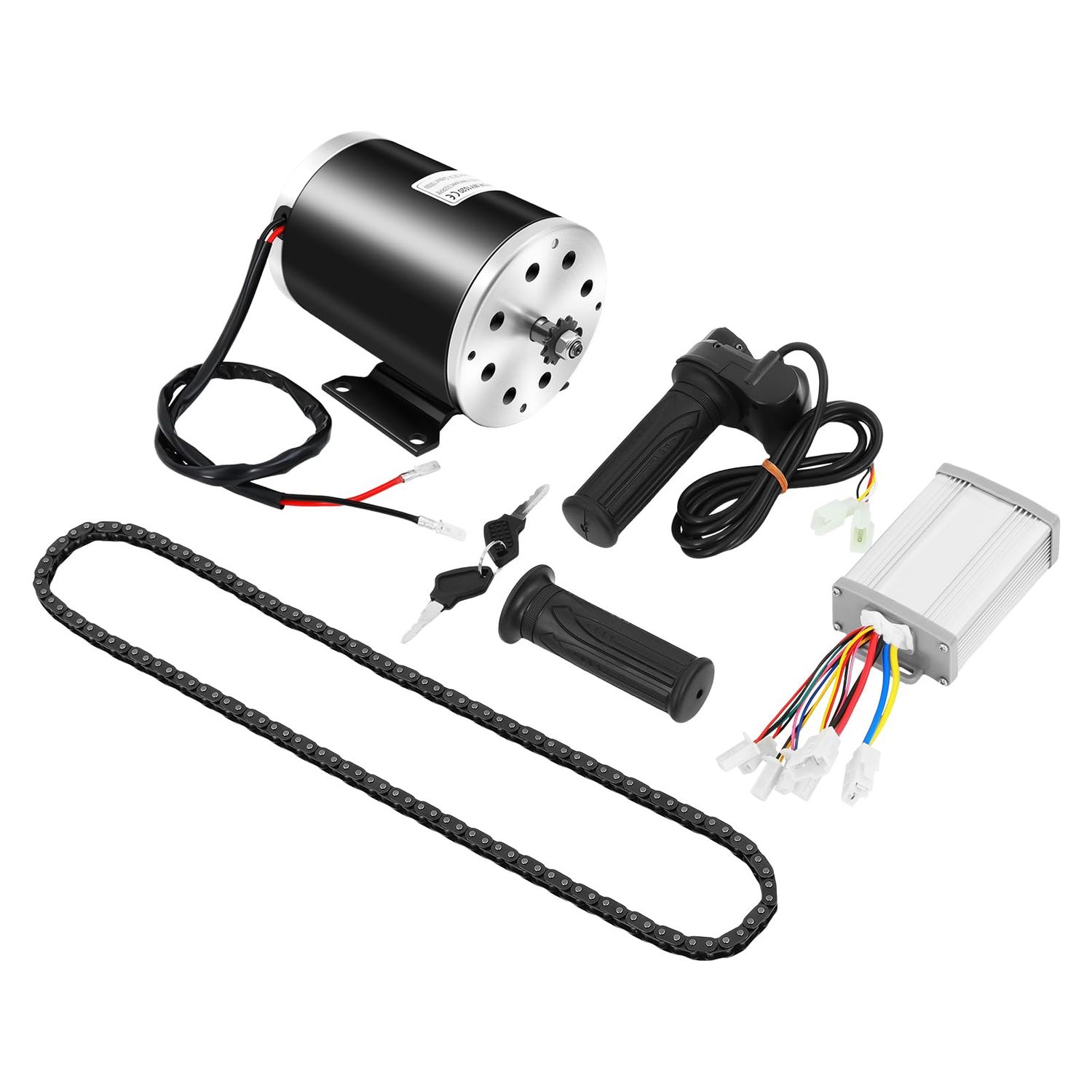

Package Included

1* Brush Motor

1* Controller

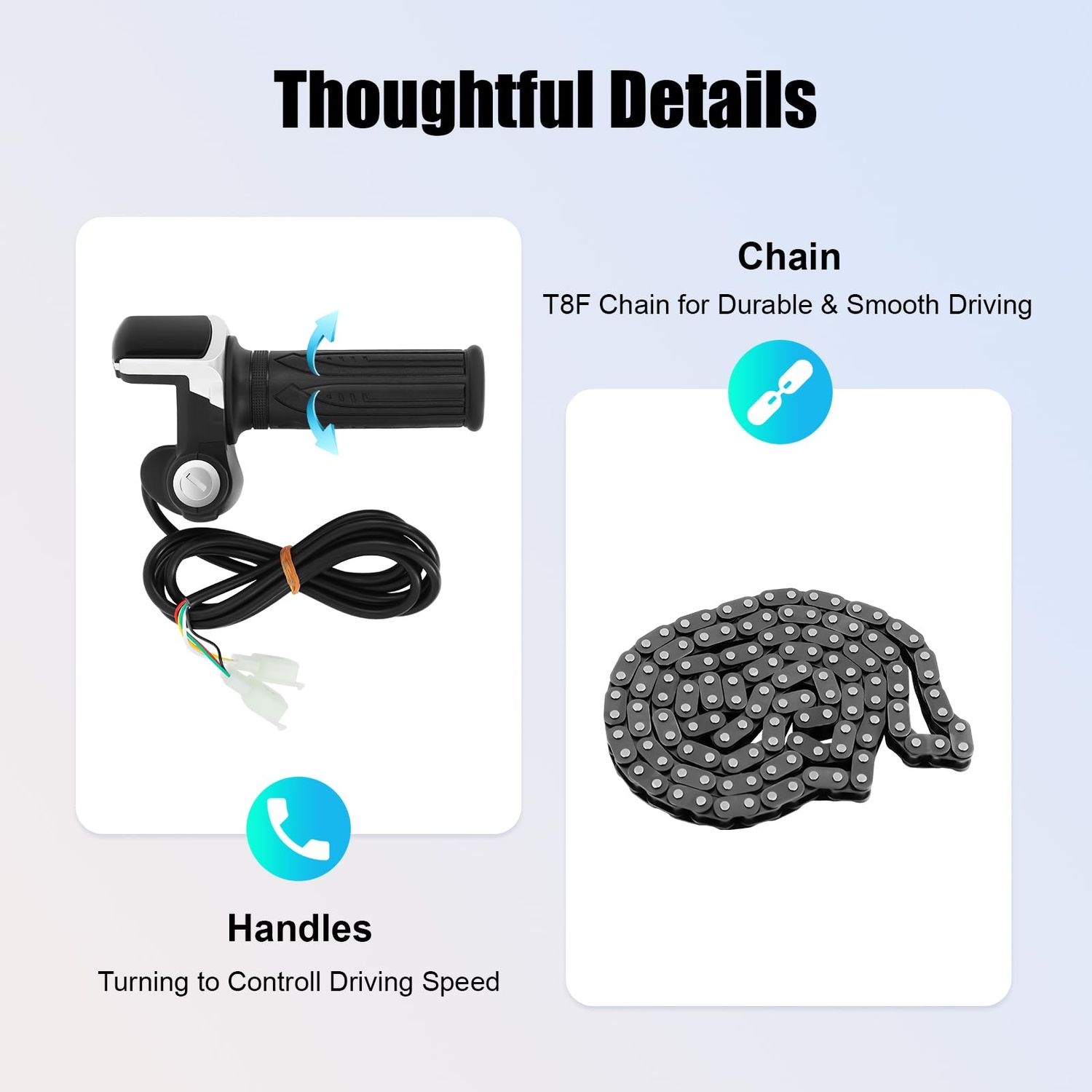

1* Drive Handle

1* Regular Handle Cover

1* Chain

2* Keys
